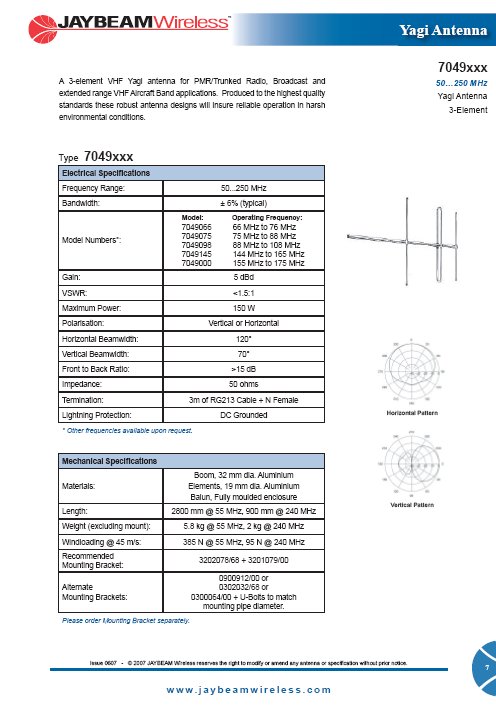

GB3VHF Jaybeam 7049145 Yagi antenna details

The beacon uses two Jaybeam 7049145 yagis beaming 288 and 348 degrees

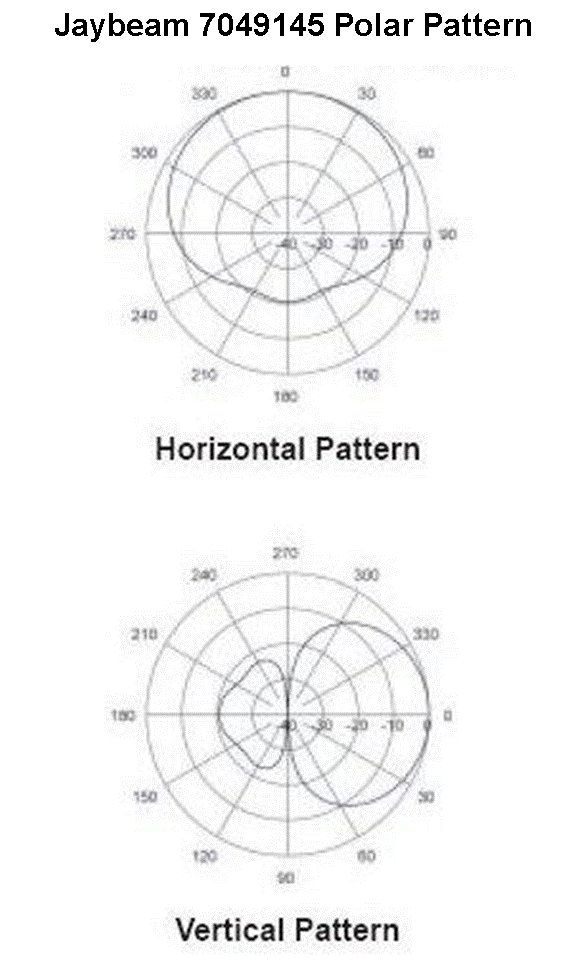

The broad polar pattern enables the two yagis to cover all of Great Britain and Ireland

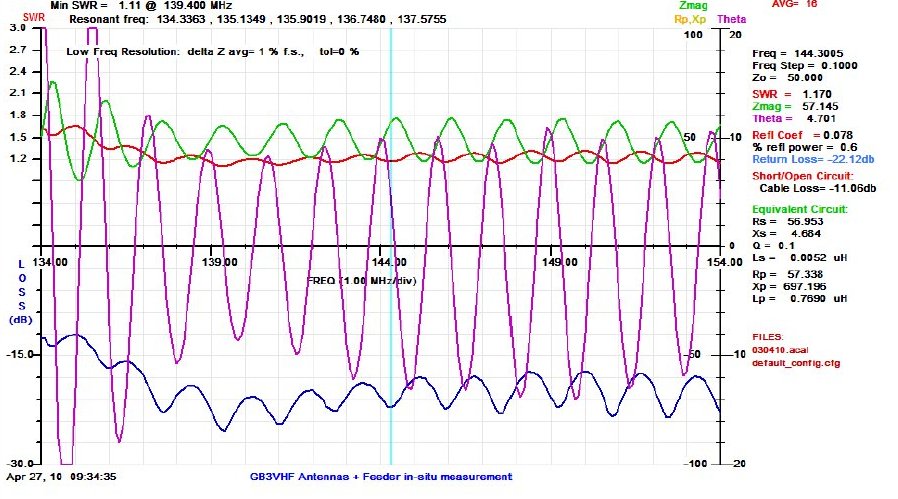

The measurement of the installed beacon antennas and feeder, taken by Colin G3SPJ on the 27th April 2010
